Welcome to my Galaxy! Initially a proof-of-concept, Galaxy ended up being the ultimate Behringer DEQ2496 replacement power supply!

Galaxy replacement power supply for the Behringer DEQ2496
Galaxy replacement power supply for the Behringer DEQ2496.

I’ve been a big fan of this processor since Behringer launched the 2U DSP8000 Ultracurve which soon evolved into the DSP8024 Ultracurve. It's no surprise therefore, that I'm currently using six Behringer DEQ2496 Ultracurve Pros in my studio. An excellent processor which in its current version, offers features and benefits such as

  • Compact 1U format
  • Ergonomic front-panel layout
  • Intuitive GUI on a large display
  • Simultaneous multi-function processing
  • Huge audio connection options, both analogue and digital
  • Professional interfaces including Word Clock
  • Excellent audio quality
  • Analogue true bypass
  • Internal memory
  • MIDI to allow remote control and saving of internal memory to a computer
  • Amazingly cost-effective solution

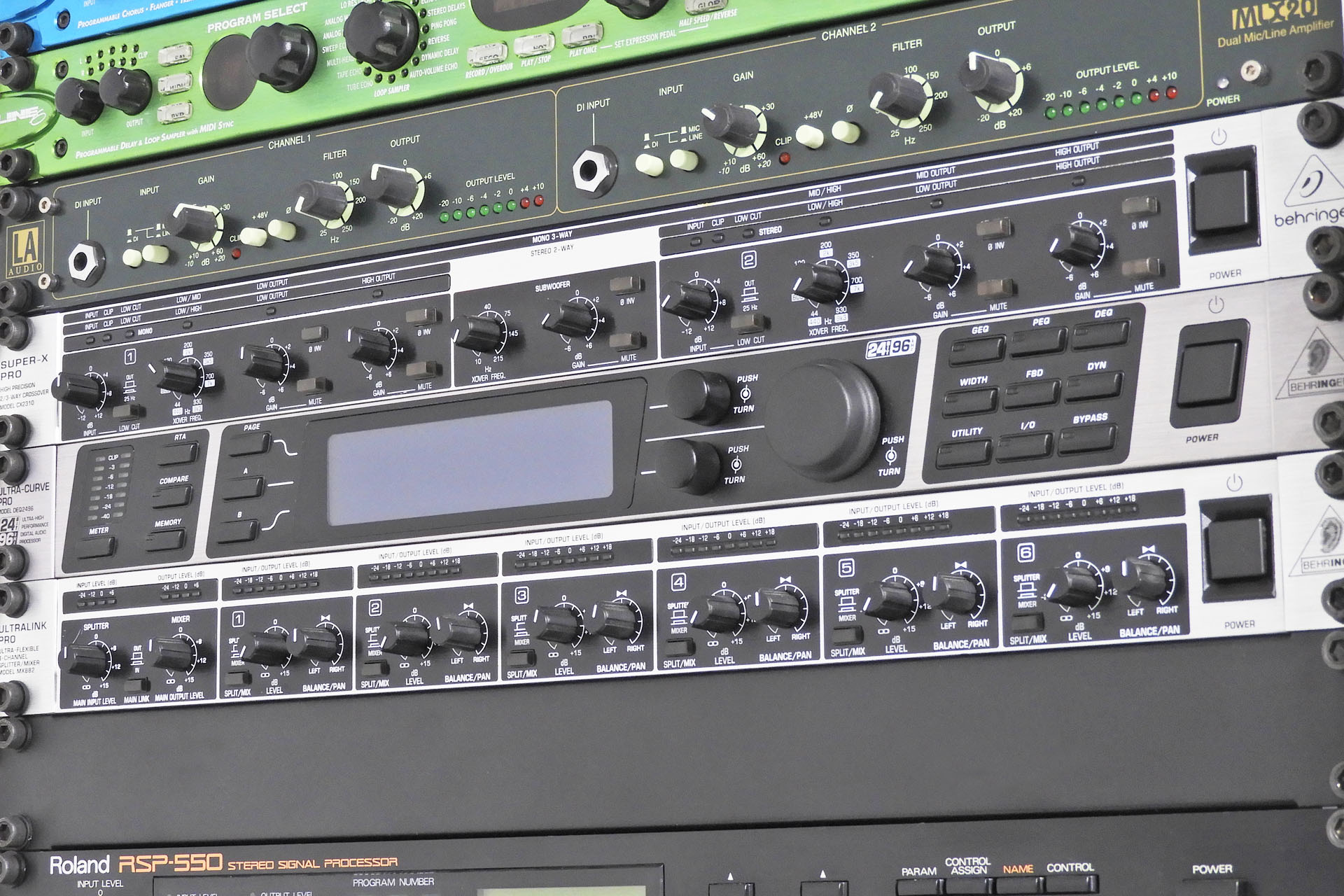

One of six Ultracurves in my studio
One of six Ultracurves in my studio together with another couple of Behringer 'Swiss army knife' type processors.

The Behringer DEQ2496 joins a selected few processors that can be found in recording studios, broadcast studios, night clubs, theatres, in the filed, audiophile set-ups and home theatre systems. That in itself is a big deal.

So why are we here? What’s wrong with the DEQ2496?

Well, nothing really but despite its huge feature list, the fact that at the time of writing, it’s still in production and retails for a very acceptable price, it does have one or two snaggy annoyances.

Made in the Far East, quality control used to be and sometimes still is an issue. Problems with internal cables for example, have been well documented. In fact, I’ve repaired a lot of Ultacurves over the years and indeed many have had simple inter-board connection issues.

Great but that’s not why we’re here!

With thousands of Ultracurves across the world now getting quite old, many DEQ2496 power supplies are starting to fail. Symptoms are various ranging from erratic or unpredictable behaviour, to the DEQ2496 simply not switching on.

Yeah but hang on a second... is the power supply in the DEQ2496 actually a Behringer power supply?

Good question! Labelled as a Behringer Model PSU2496, it would appear that it's actually made by Eton (a well respected manufacturer of switched-mode power supplies) and is from Eton's ET166 range.

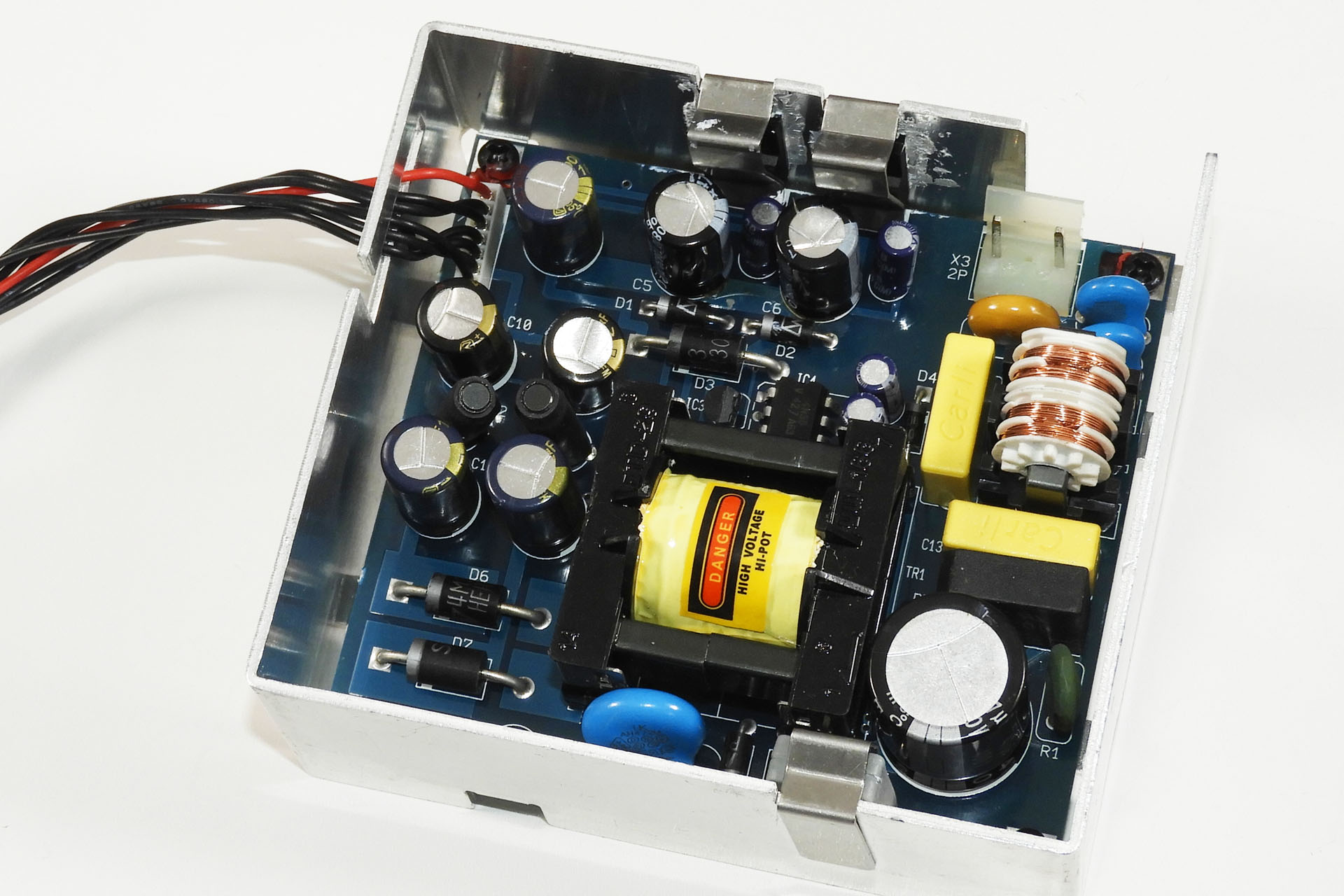

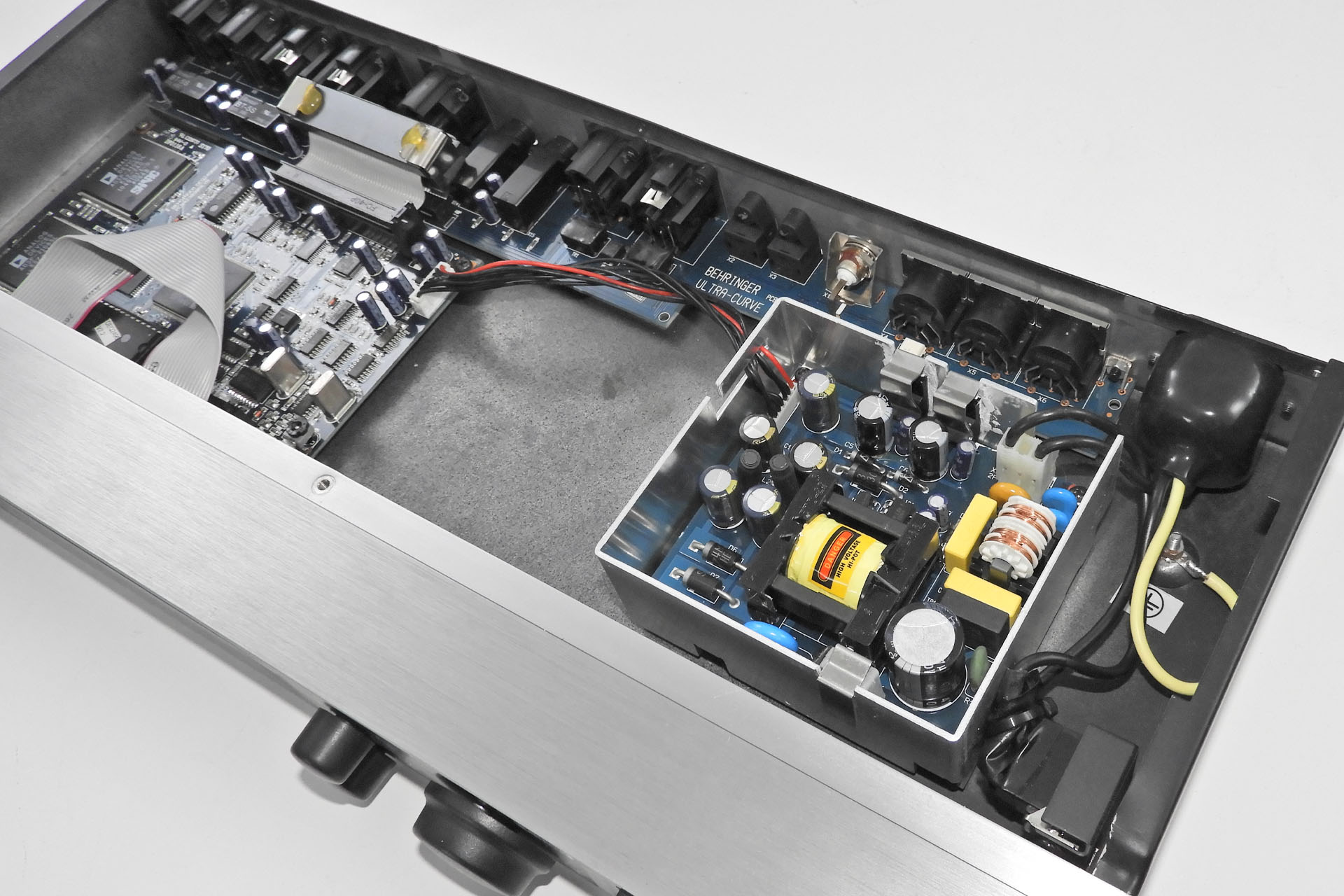

Behringer PSU2496 or Eton ET166
The Behringer PSU2496 power supply or is it an Eton ET166?

The PSU2496 is a very cleverly designed little power supply. Labelled as a switched-mode power supply (SMPS), it's actually a hybrid. The voltage for the +/-15V analogue supplies for example, comes off a pair of 78 / 79 series regulators. The input to those regulators however, does come from a very fast-switching back-end. It's a trick I've in the past to make guitar pedal power supplies and works really quite well.

The PSU2496 is packed with a bunch of similarly neat little features including proper capacitive ground / earth decoupling which I have incorporated into the Galaxy design.

Behringer PSU2496 uses linear voltage regulators for main audio supplies
The Behringer PSU2496 uses linear voltage regulators for+/-15V audio supplies.

From my experience, these things don't fail because of poor design, sub-standard components or build quality. They fail because they're old. A lot of heat is generated by the power supply and devices will eventually succumb to thermal stress. It's that simple. When it comes to current requirements and provision, it's difficult to tell how much headroom exists between what the PSU2496 can provide and what the DEQ2496 needs. One could argue that the reason the PSU2496 runs so hot is because there isn't much headroom and that the power supply is actually running near to the edge of its limits.

In the event of PSU failure, swapping out the through-hole electrolytic capacitors for high-temperature rated, low ESD equivalents, can help but sometimes other components fail and fault-finding a switched-mode power supply can be quite challenging, even with the appropriate technical literature. The wire-wound components are of particular concern as it's virtually impossible to acquire these as spare parts.

Initially a proof-of-concept, my Behringer DEQ2496 replacement power supply wasn’t intended to become a commercial product. Once it was up and running, installed in two of my own Ultracurves and having worked flawlessly for a couple of months, I mentioned the project to some friends and customers who I knew were DEQ2496 owners. Within a couple of weeks, three customers had brought me their Ultracurves asking if I could install my Behringer DEQ2496 replacement power supply. That’s when things started to get serious and Galaxy was born.

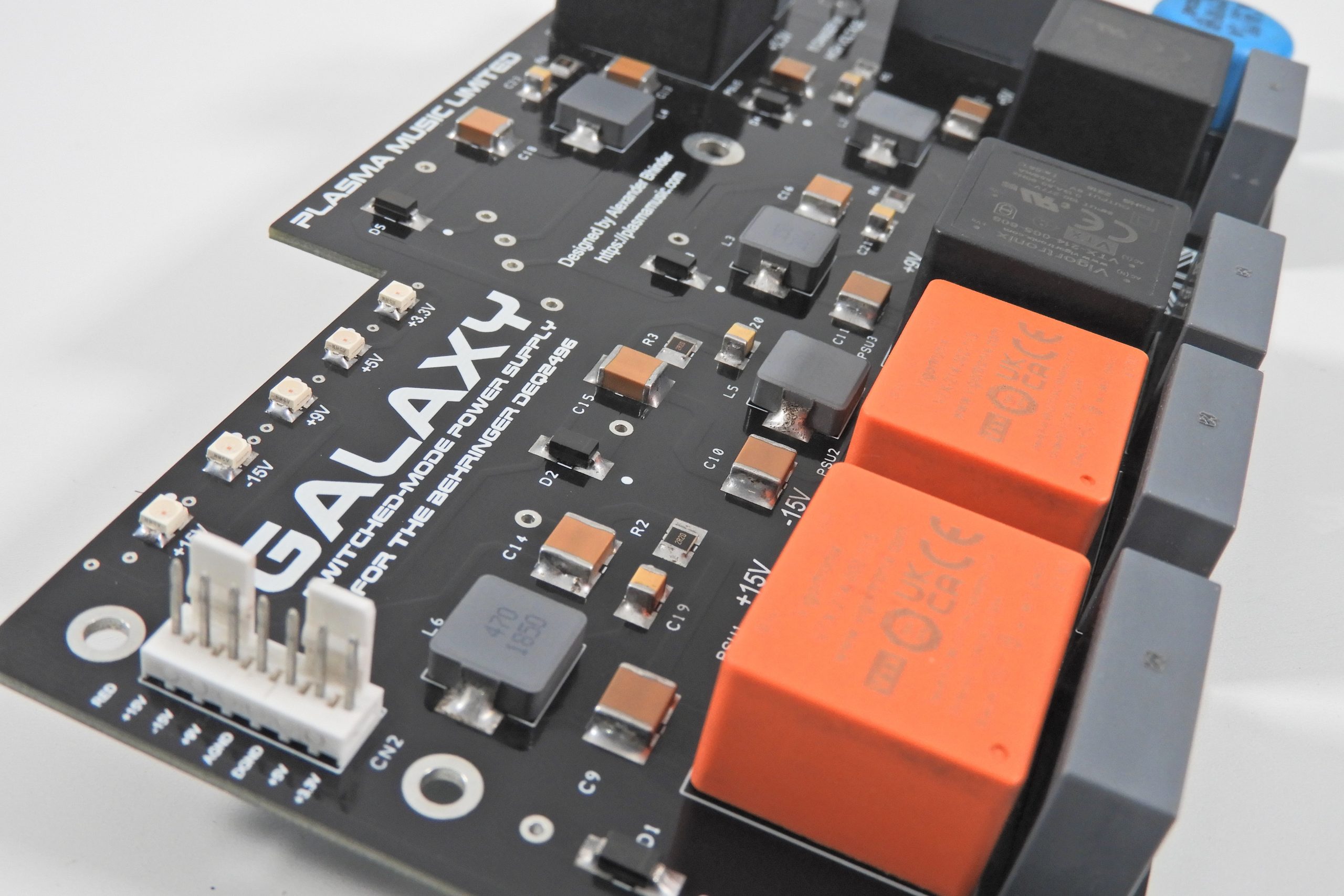

Galaxy Behringer DEQ2496 Replacement Power Supply
Galaxy fits like a glove into the DEQ2496.

Had I designed a power supply similar to the Behringer PSU2496 (or Eton ET166), I don't think I'd have come up with anything much better, to be honest. As I've already commented, it's actually a good power supply! Anyway, fortunately there's enough room in the DEQ2496 case to develop something a little special and what this awesome processor really deserves.

Galaxy is also a SMPS but with several differences to the Behringer PSU2496.

Unlike the PSU2496 with all its interdependencies, Galaxy offers fully independent voltage supplies, with only pre-filtered mains, common to all.

Using low-leakage AC / DC converters which are both over-voltage and over-current protected, the heat generated is much, much lower than the original PSU2496. This not only ensures that Galaxy is running cool but that the electronics inside the Ultracurve are also running cool.

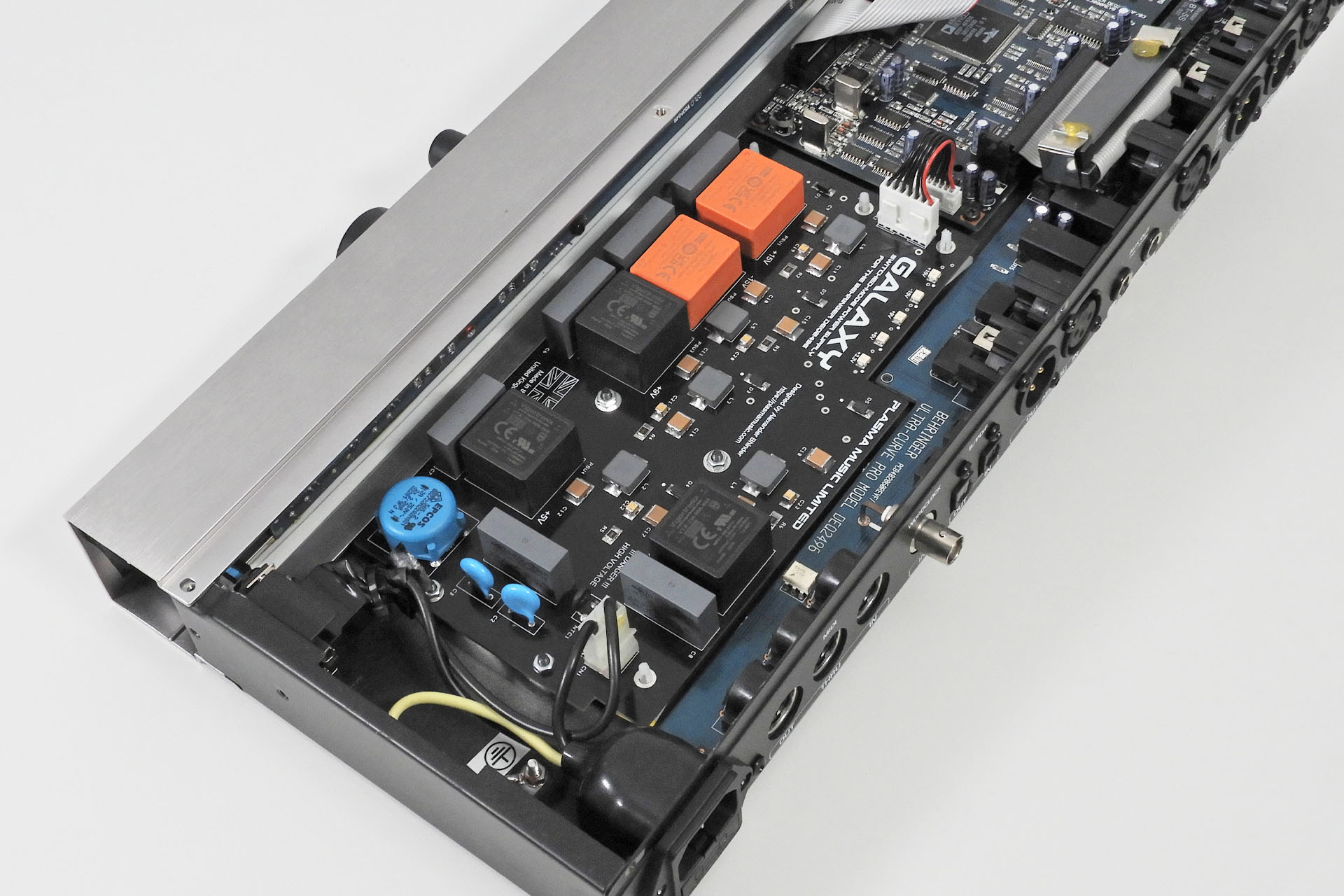

Galaxy installed into Behringer 2496 Ultracurve Pro

Switched-mode power supplies shouldn't generate hum like linear power supplies. Due to the nature of operation however, they can / do generate very high-frequency noise. When it comes to incorporating switched-mode power supplies into audio electronics, noise filtering is paramount. To that end, Galaxy has precision-designed filters on the back-end of each AC / DC converter, including those that supply 5V and 3.3V for the digital side of things and the display (something you don't see too often). After extensive testing, I'm delighted to report that just like Aurora, Supernova and other power supplies I've designed, Galaxy is quiet! In fact, it's much quieter than the original PSU2496. 🙂

Galaxy precision designed filters
Galaxy has independent voltage supplies, each is individually filtered.

Each supply also has its own status LED giving a simple visual indication that respective supply lines are working.

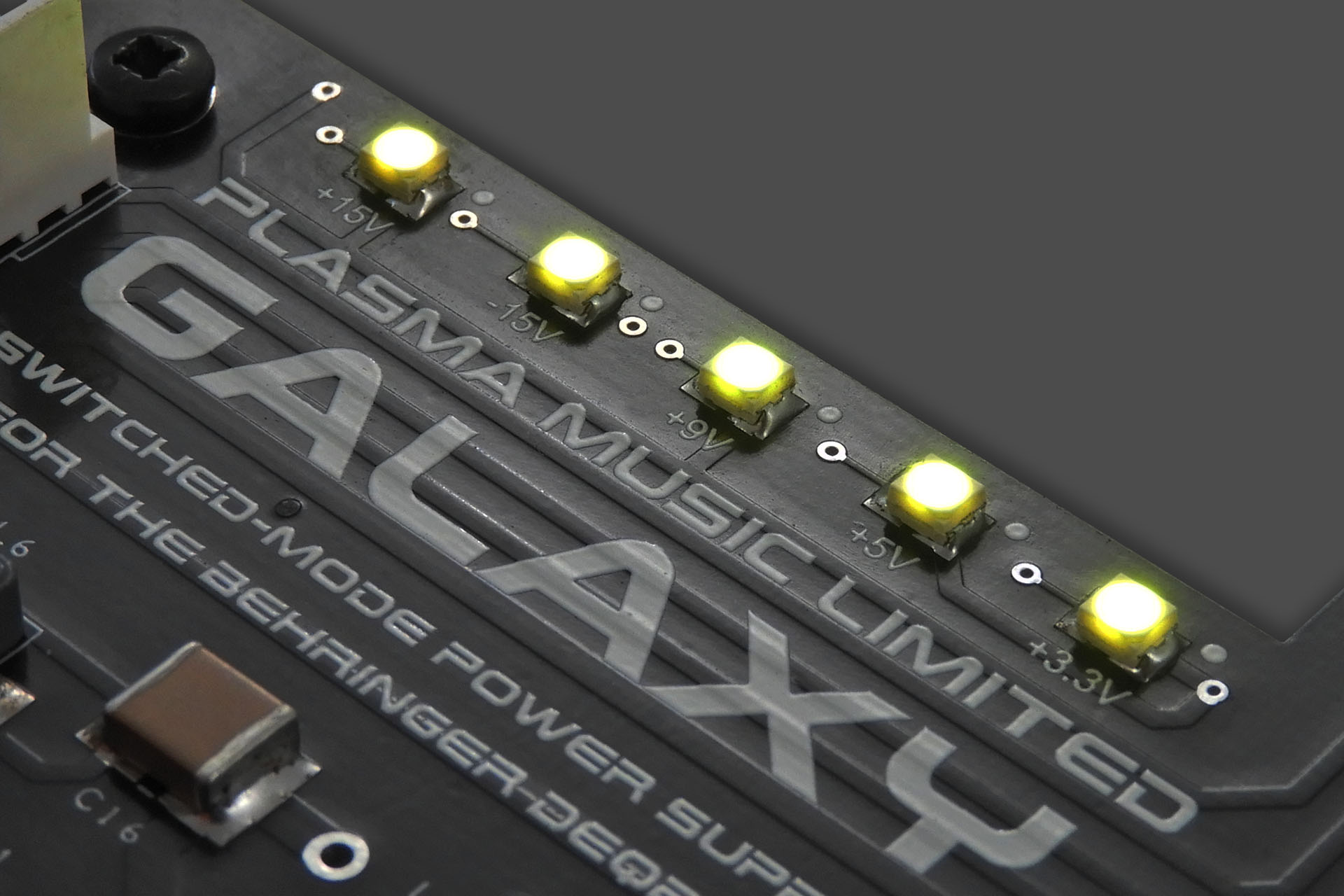

Galaxy status LEDs let you know what's going on
Galaxy glows in the dark! Independent status LEDs show you that things are working. It's going to be bright in that box...

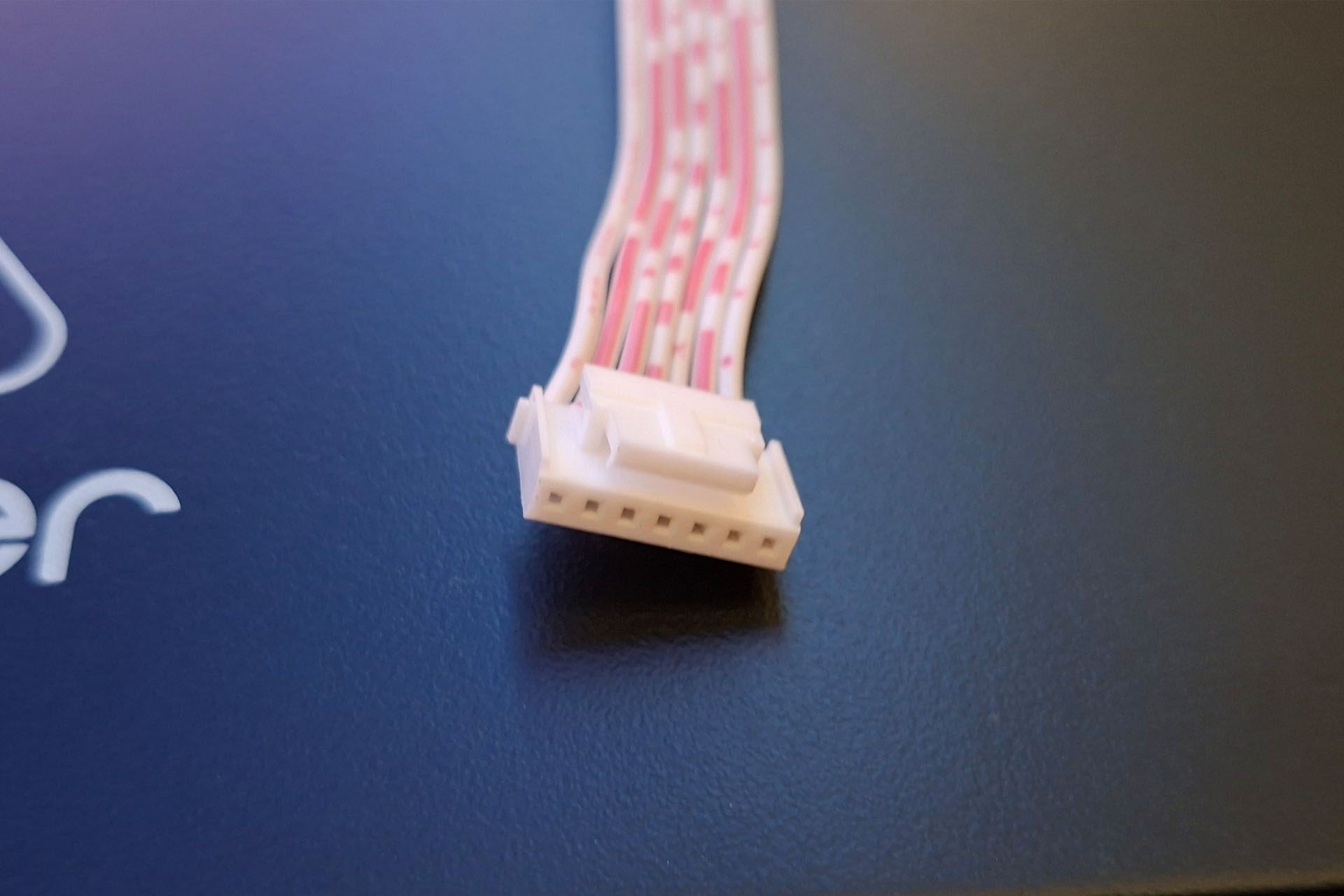

Voltages are directed to a rather over-sized 2.54mm (0.1 inch) pitch Molex KK 259 header and Galaxy is supplied with a connection cable to go to the Behringer DEQ2496 main-board.

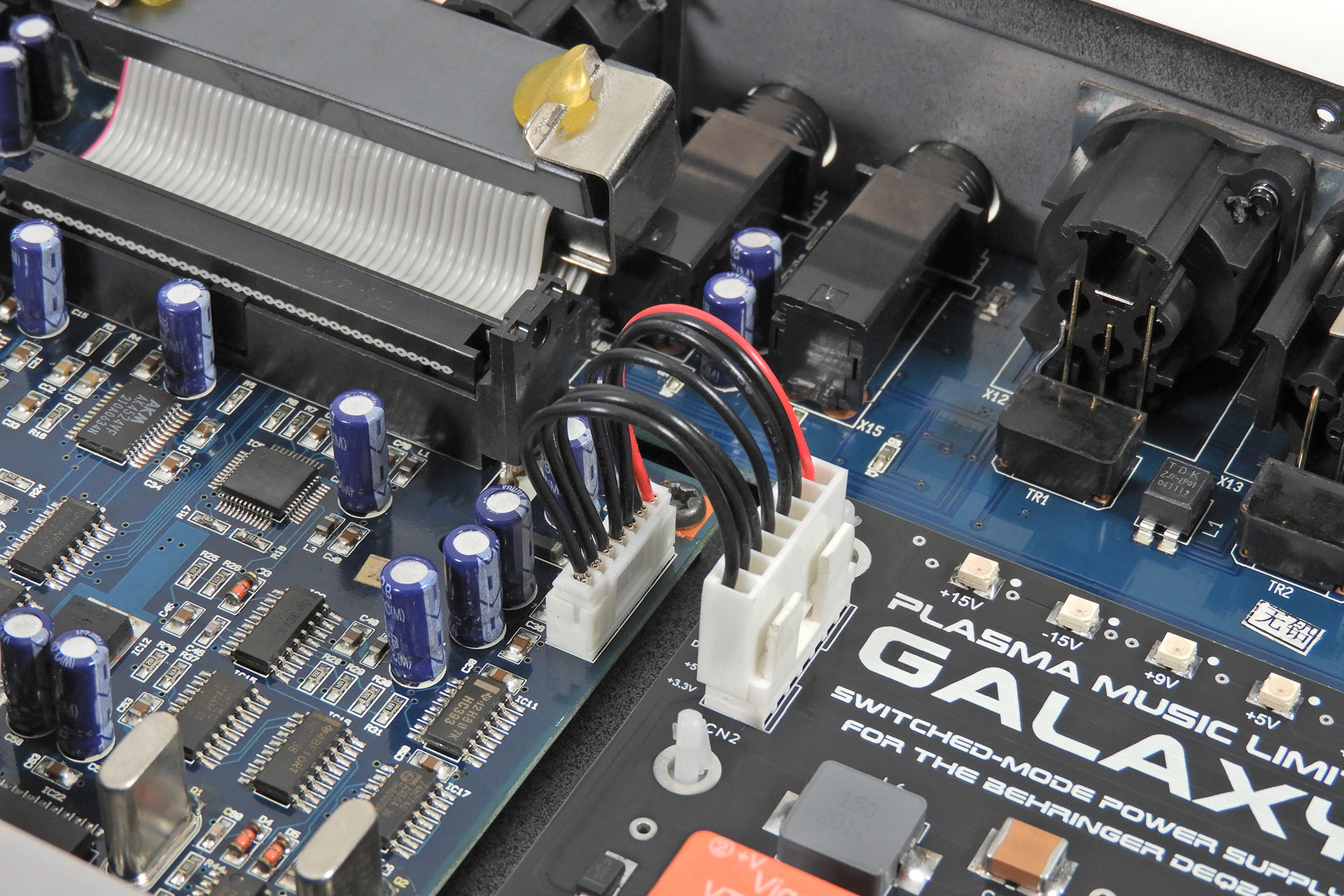

Molex to JST connector from Galaxy to DEQ2496 main-board
7-way Molex to JST connector from Galaxy to DEQ2496 main-board is included with the kit.

Like all my modular switched-mode power supplies, there’s very little exposed mains voltage on the top-side of the PCB.

Galaxy mains protection and filtering
Galaxy has minimal exposed mains on the top-side of the PCB and the mains input is fully protected and filtered.

In fact, safety always comes first so again in common with all my modular switched-mode power supply designs, Galaxy features a bleed resistor across the already fuse protected mains supply.

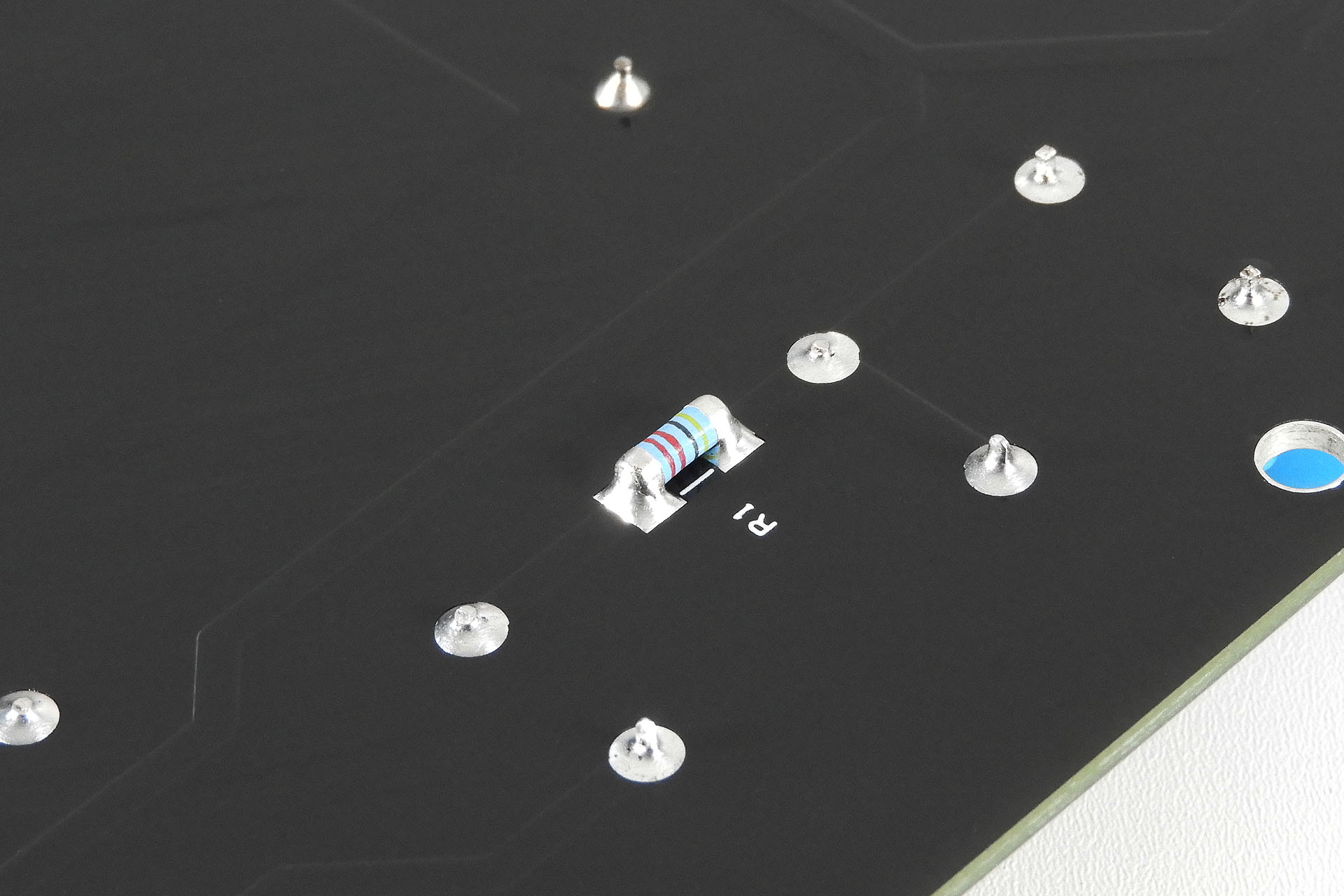

Galaxy bleed resistor is underneath the board
To reduce exposed mains on the top-side of the PCB, the bleed resistor is mounted underneath the board.

With safety still in mind, Galaxy is secured to the inside of the DEQ2496 chassis using the same mounting points as the original power supply. Stand-offs around the two connectors, reinforce the PCB and prevent it from flexing when connecting mains input and the processor-board.

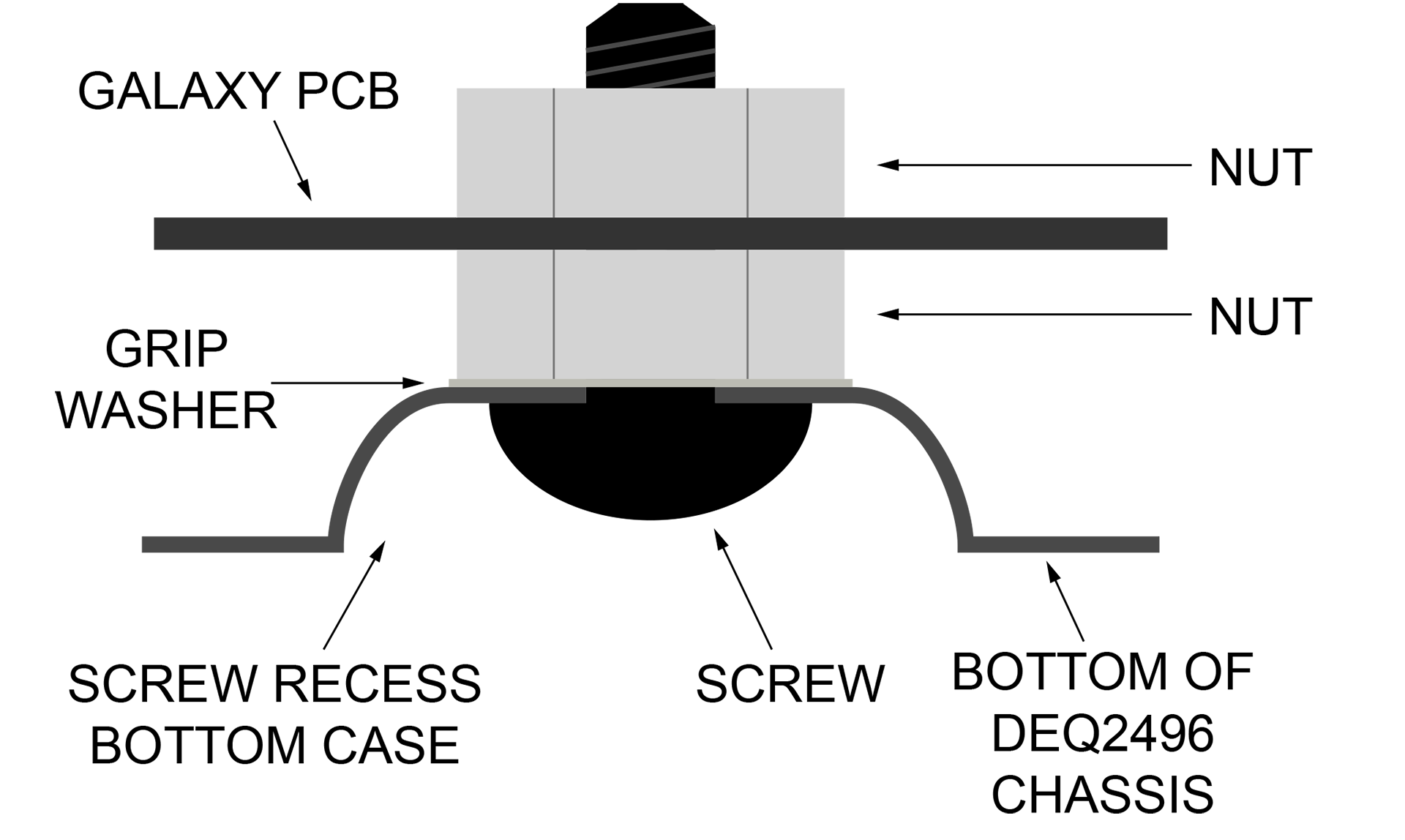

Galaxy mounting to DEQ2496 chassis
Galaxy uses the same mounting points as the original power supply and is very secure.

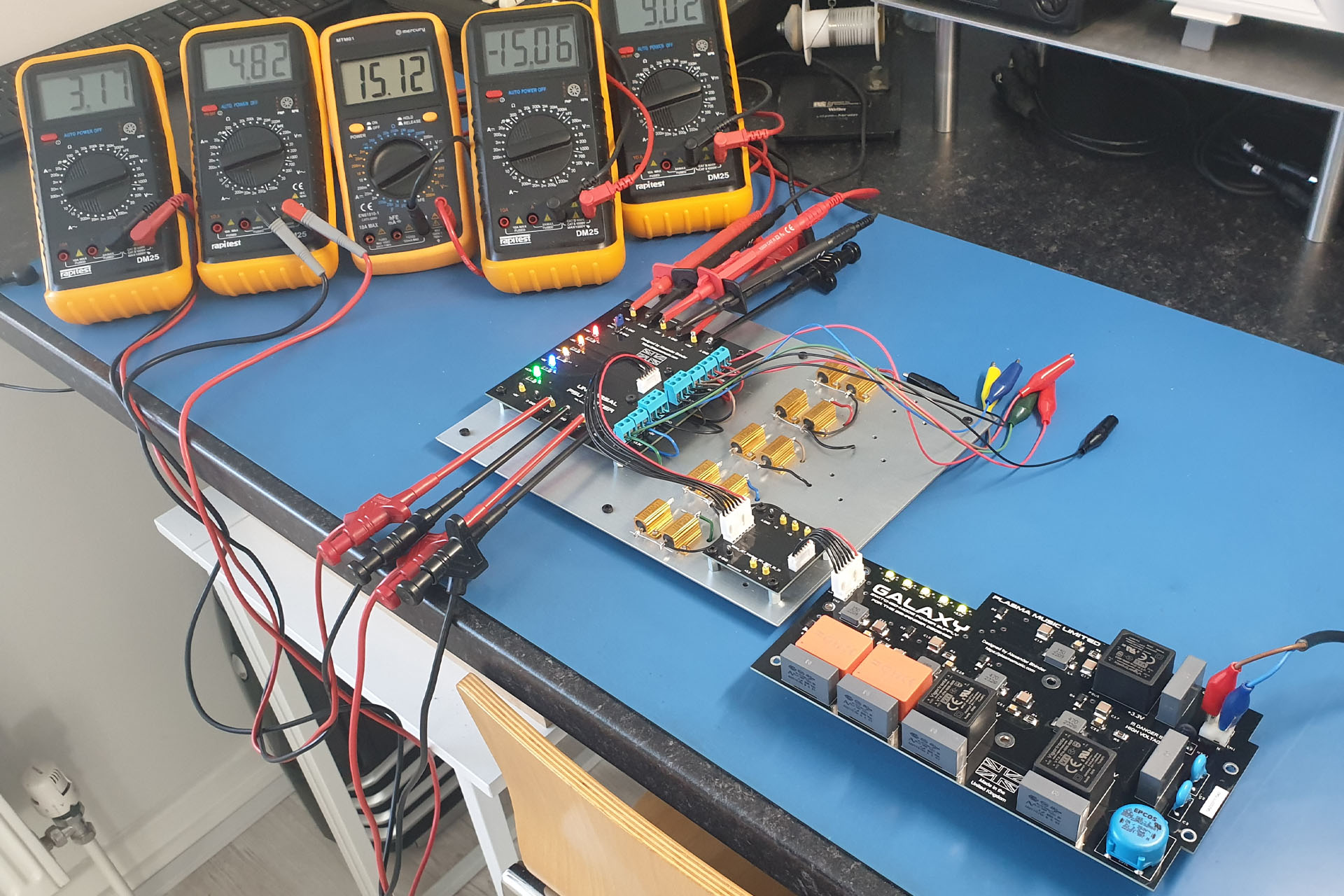

After measuring the current consumption of each voltage line, I wanted my Behringer replacement power supply for the DEQ2496 to have as much headroom as possible. One of my initial design objectives therefore, was that each voltage supply of Galaxy should be able to offer at least twice the current that is required.  Taking advantage of the space available in the DEQ2496 case, I was able to fulfil that objective. Not stressed and with ample headroom, this is one reason why Galaxy runs so cool; the power supply can actually deliver considerably more power than is needed.

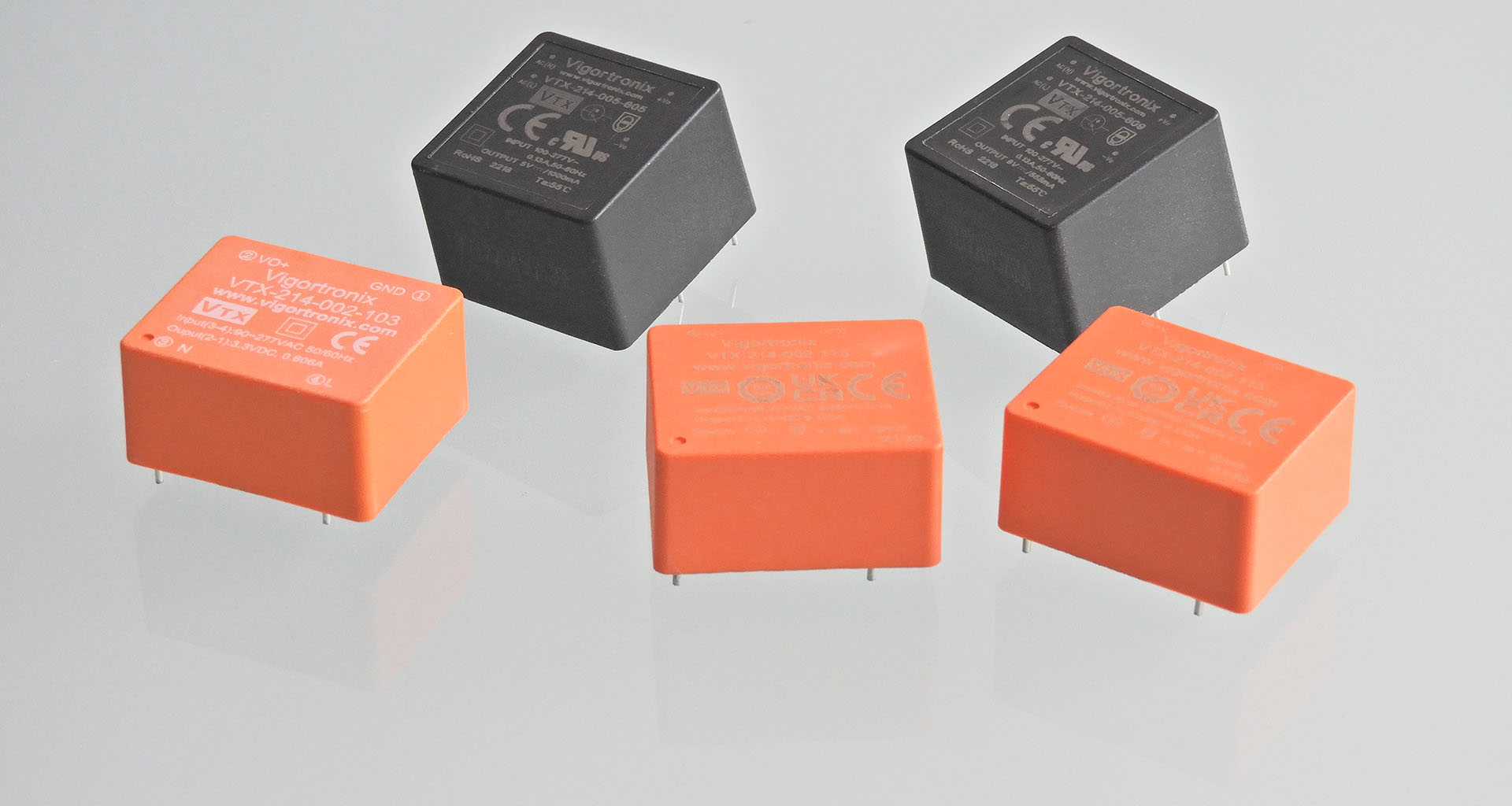

Galaxy uses British made Vigortronix AC DC converters
Galaxy uses high-specification, low-leakage, British made Vigortronix AC / DC converters with built-in over-current and over-voltage protection.

I'm so sorry to have to say this but one potentially big issue with Far Eastern manufactured equipment that's powered from mains, is the lack of standardisation, compliancy and safety of the power inlet. Quite frankly, it's all over the place. Live and neutral are often swapped around and it's very common for the power switch to be connected to the neutral line. This is really frustrating when it comes to confirming which line the fuse is in, for example.

"So what's the big deal?" I hear you ask.

Hey, don't take my word for it. The following was taken from some PAT testing guidance I found on line here.

Under normal circumstances, the current will go to the appliance down the live wire first passing through the plug fuse (and any internal fuse).  If the appliance has a fault and draws too much current, the fuse would detect this and blow.  If the live and neutral wires are crossed over, the current passes down the neutral first.  The result is the equipment user could be at risk if the appliance has a fault.

I therefore include a little kit with Galaxy and recommend that while the box is open, input mains polarity is corrected.

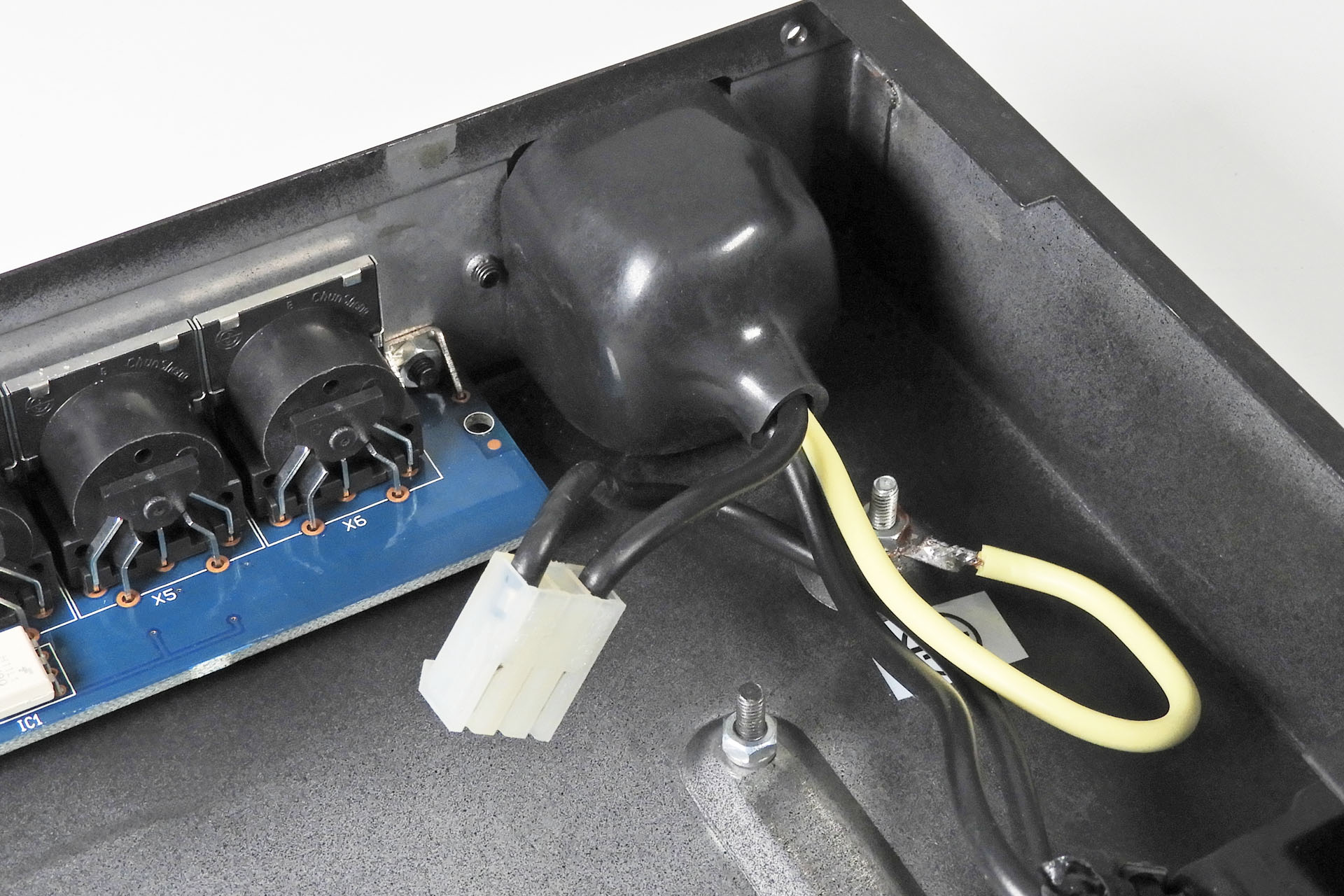

Mains power input to the Behringer DEQ2496 can be non-standard
Galaxy includes a kit to help make the DEQ2496 a little safer. All required information is included in the installation manual.

Behringer has a well established reputation for making affordable audio gear. It doesn't always mean however, that quality needs to be compromised. The DEQ2496 Ultracurve Pro epitomises that fact. Competitively priced, it's difficult to find something similar. My Galaxy replacement power supply for the DEQ2496 will ensure that at least the power side of things will run smoothly and last for a very long time. 🙂

Installing Galaxy is amazingly straight-forward for anyone who has experience with opening up 19-inch rack gear. Personally, I would check the polarity of the mains live / neutral, correct them if they're wrong and check that the ON / OFF switch is switching live and not neutral. Other than that, there's no desoldering / soldering, just four screws to remove, four replacement (longer screws to fit, a couple of connectors to pull off the old PSU and main-board and then connect Galaxy. Despite the ease of installation however, I feel obliged to offer proper documentation so as soon as that's complete, Galaxy will be available directly from my e-store. 🙂
