Marshall JMP-1 in for service at Plasma Music

Here’s a Marshall JMP-1 MIDI valve pre-amp that I’ve just serviced.

I’ve changed the valves and power supply capacitors, cleaned up the metal work and implemented my ‘Live-Forever’ battery mod’. The original battery is mounted bang in the middle of the main PCB, so you really don't want this to leak.

The serial number indicates that it was built in early 1992 which not only makes it twenty-eight years old but one of the first JMP-1s off the Marshall production line.

An early  MIDI valve pre-amp although following the likes of similar pre-amps like the ADA MP-1, the Marshall JMP-1 has always been a really under rated bit of kit, despite the fact that named artists such as Billy Gibbons (ZZ Top), Phil Collen (Def Leppard), Iron Maiden, Megadeth and many more, still use them even today. In production for well over ten years, also says something about this little gem.

The JMP-1 is not a modeler like modern stuff; it’s the real thing, just with MIDI. Run into a valve power amp (or two), it just sounds amazing and the quality of the speaker emulated outputs is definitely good enough to go straight into the board or your DAW.

With most of the distortion being generated in the semi-conductor domain (some of which is highlighted in the image below), many purists might shy away from this beast.

Marshall JMP-1 semi-conductor distortion

On the other hand, classic Marshalls such as the legendary Silver Jubilee series and the monstrous JCM900 Dual Reverb, also use semiconductors to produce some of their distortion tones.

And then there's the clean channel of the JMP-1 which is based on the classic Fender design... with a few tweaks, of course. Anyway, at the end of the day, it's the sound that counts and as I've said, these things have still got it, even today.

RATTLE A' HUM

Lots of JMP-1s hum. This doesn't come through the audio outputs but it can be annoying and I've been trying to get to the bottom the cause for years.

Now, instead of looking at the JMP-1, I'm going to look at what the JMP-1 is plugged into…

Marshall JMP-1 Power Inlet

We all know that mains voltage is AC (alternating current). The voltage varies between 100V and 240V depending on where you are in the world. The frequency also varies and can be either 50Hz or 60Hz. We convert this AC voltage to DC (direct current) to power appliances, gadgets and other systems that now dominate our lives. So why is the supply AC and not DC, then? Well, the answer to that is a little involved as there isn’t a single reason. Predominantly however, it’s a matter of safety. If you are in contact with a mains supply (eek), the alternating nature and the frequency of the supply gives the human body enough time to react and pull away. There are other reasons to do with energy but safety is the main reason that the electricity supply is AC.

Unfortunately, it’s not pure AC, though. There’s a DC element present in the mains which has actually grown over the past twenty years or so due to the fact that the number of appliances that use what’s known as half-wave rectification has increased. I won’t go into just why half-wave rectification dumps DC on the mains suffice to say that it can be an issue for some devices.

So how does that affect my Marshall JMP-1?” I hear you ask.

Well, the other downer is that some appliances contain components that are particularly sensitive to the DC offset on the mains supply and it just so happens that the transformer in the Marshall JMP-1 is one of them. 🙁

Anyone with a little electrical know-how will now wonder how that can be. Transformers are inductive components and so filter out DC. Yep, that’s absolutely correct and in fact the DC that’s on the mains doesn’t get through to the rest of the power supply in the JMP-1.

What the DC component can do however, is saturate the core of the transformer, thus causing the laminates to oscillate. The gap between the top of the transformer and the inside of the JMP-1's top case is very small so you can guess what happens. That's why the hum disappears when you remove the top-case!

Marshall JMP-1 Transformer
The core of the transformer in the JMP-1 saturates due to the presence of DC on the mains supply.

What pointed me in this direction was that after being on for about an hour or so, the laminates on the transformer get seriously hot. I mean SERIOUSLY hot. The JMP-1’s regulators however, don't. In fact, they don’t even have any additional heatsinking. This paradox was intriguing. I concluded that the transformer heats up as a result of oscillation. As mentioned, the heat is substantial and the transformer is heavily stressed as a result. Over time, this will reduce the life of the transformer. I'm afraid it's just a matter of time before the transformer fails. 🙁

Marshall JMP-1 Regulators
The regulators in the JMP-1 don't have any additional heatsinking because they don't run hot.

I should mention the obvious; the JMP-1 has got a couple of valves in it! Although running at about 300V, much higher voltage than the semiconductor parts of the analogue circuitry, they consume very little current and hence, the supply for the valves isn’t regulated. The valve heaters run at about 6.3V and although they ‘heat’ (obviously), it’s not normal to regulate the supply to the heaters, either.

Marshall JMP-1 Valves
It's very unusual to regulate the voltages to pre-amp valves.

Familiar with DC offset on mains being a problem on high-end audiophile equipment, all the evidence seemed to be mounting up. 🙁

You can suppress the hum with cushioning between the top of the transformer and the case but this will only keep the transformer from dissipating heat that's generated as a result of the problem and hey, it doesn't actually fix things, does it?

If asymmetrical voltage supply is indeed the problem, then the only real and proper solution is to get rid of the DC component all together.

I'm pretty determined to get to the rout cause of this and will keep everyone posted on how my pursuit for the quiet Marshall JMP-1 progresses.


UPDATE - 4th January 2021

Marshall JMP-1 Knobs Nuts and Bezels

If you want to read more, my latest Marshall JMP-1 post is here. I now provide replacement Marshall JMP-1 Knobs Nuts and Bezels sets which you can read about here.

I've also developed something called Eclipse; a bounce eliminator which can be fitted by anyone with a little technical know-how and which gets rid of the data entry knob skipping thing! You can read about Eclipse here.

Eclipse Bounce Eliminator for the Marshall JMP-1

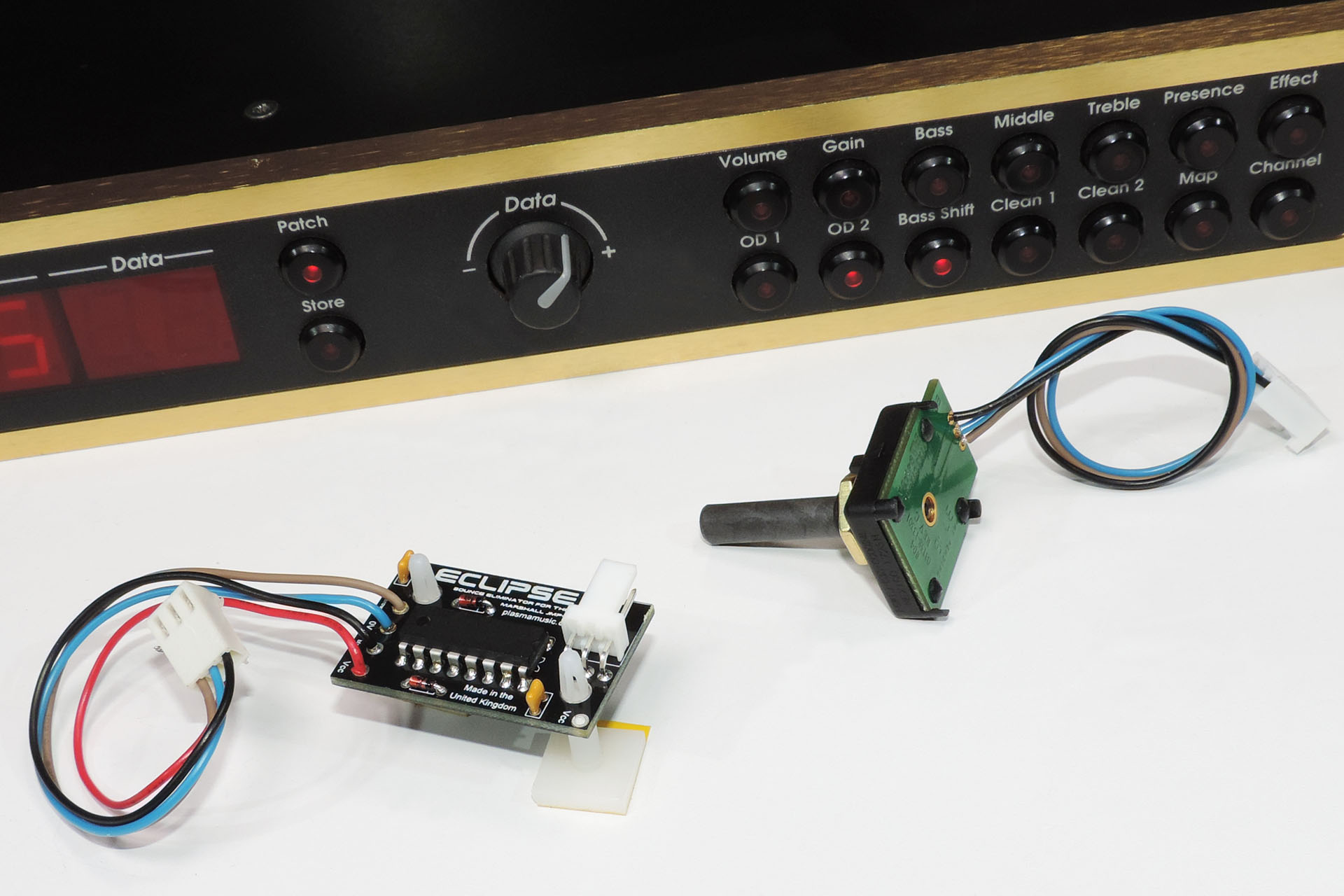

Eclipse bounce eliminator for the Marshall JMP-1 stops data entry knob skipping once and for all.

UPDATE - 13th March 2021

A thousand apologies, Plasma People! What with the flood back in August and COVID-19, I've been a bit distracted! 🙁

Anyway, on the back of my theory that the transformer in the Marshall JMP-1 may be susceptible to mains DC off-set, I designed Orion Type A, a DC filter / blocker.

Orion Type A DC filter

Orion worked very well and indeed does filter out DC on the mains but... I'm afraid it didn't get rid of the hum on the JMP-1.

Orion Type A DC filter at Plasma Music
This is what's inside my Orion Type A DC filter. It works great but doesn't do anything for JMP-1 transformer hum. My theory wasn't sound.

THERE'S STILL LIGHT AT THE END OF THE TUNNEL

A few months ago, I managed to track down a chap called Graham Sopp. Graham has a company, the name of which may be familiar to some. It's called Dagnall Electronics. The reason for potential familiarity is that many of you will recognise it as being that on the side (or top) of many a Marshall transformer! That includes our beloved JMP-1's power transformer.

Well, Graham wasn't just exceedingly knowledgeable but was also very (VERY) helpful. We had some considerable correspondence over e-mails and he expressed his surprise at my theory of DC off-set being the reason behind our humming JMP-1 transformer, suffice to say his scepticism was well founded.

Anyway, Graham's suggested that I conduct a few tests and get back to him with my findings. He said there are two potential paths to follow; the first is that I return humming transformers which will have their laminations replaced and will then be re-varnished. The second is that 'we' design a new transformer using a higher  specification material for the laminates.

Dagnall Electronics is a design company and does not manufacture anything. The company that actually makes the transformers, is called TRX Electronics and is based in Malta. TRX Electronics is no longer set up to manufacturer the TXMA-00014, the original JMP-1 transformer. This means that developing a TXMA-00014 Mk II (?) could be quite expensive, if TRX Electronics even considers taking on the job. On the other hand, it would be quite impactable for JMP-1 users, me and TRX Electronics, to send potentially single transformers back and forth.

As I said, I really am on a mission to resolve this but please be patient. Drop in here every once in a while and I'll get back to you as soon as...


UPDATE - 22nd June 2021

While the outputs of the Marshall JMP-1 are +4dBm line-level, they're also unbalanced, which was quite a common feature (or lack of) for the time. I spent quite a while, looking to install balanced output drivers into the JMP-1 but changing the 2-pole sockets over to 3-pole, was a major obstacle for my plans .

Today however, I released my Transformer Coupled Interface (TCI) Type 1 which is a passive stereo unbalanced to balanced line-level converter. TCI allows you to properly interface your favourite MIDI valve guitar pre-amp with your DAW or mixing desk. You'll notice the difference! 🙂

TCI Type 1 2-channel unbalanced to balanced converter
At last; balanced line outputs from your JMP-1.

You can read all about my TCI Type 1, here or you can check it out in my on-line store, here.


UPDATE - 21st September 2021

At last!!!! 😀 My PML-TX01 upgraded replacement transformer for the Marshall JMP-1 is finally here!

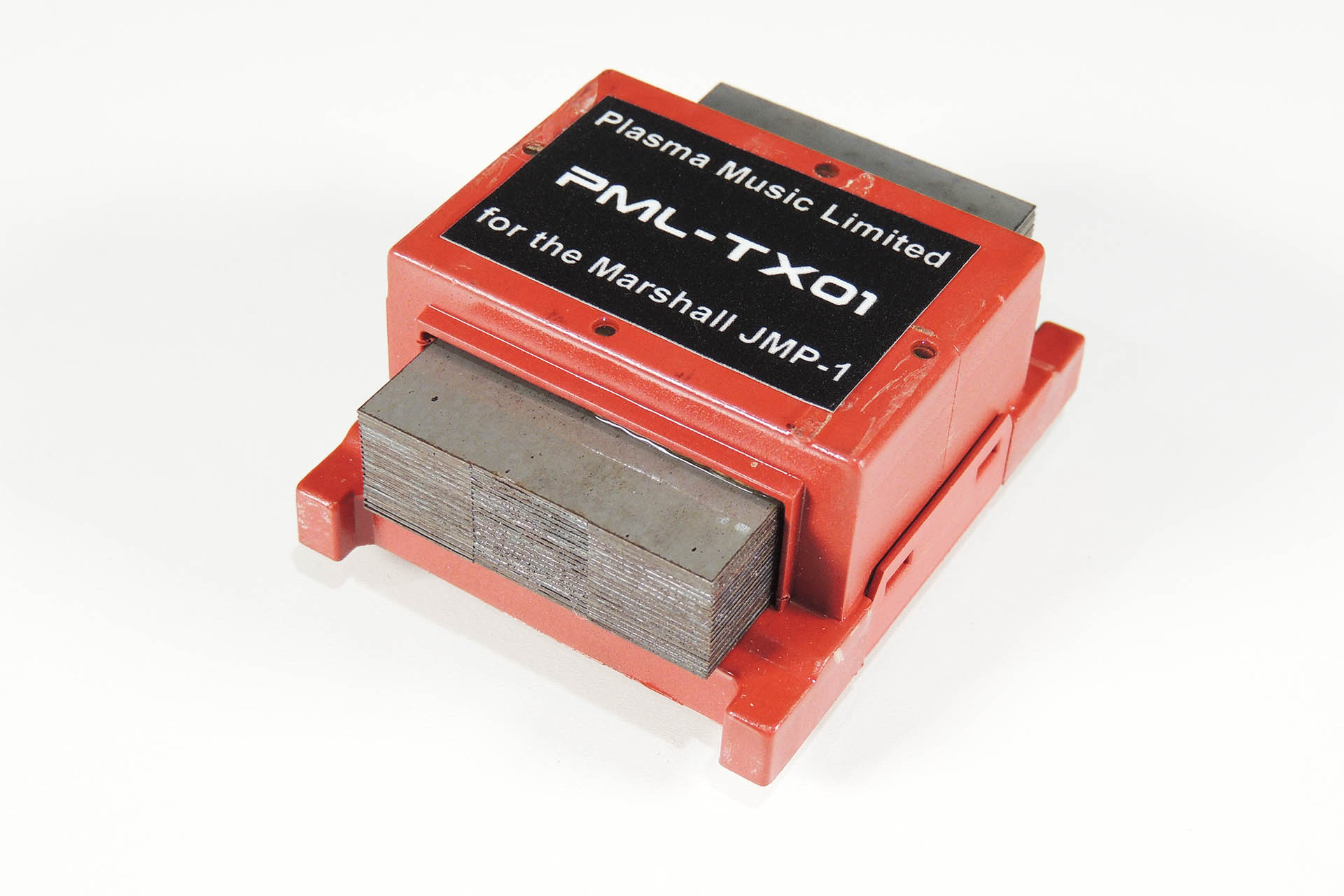

PML-TX01 JMP-1 hi-spec transformer.
And here it is... my PML-TX01 transformer for the Marshall JMP-1.

The laminates of the PML-TX01 are made from a higher specification material, thereby reducing hum and hence, heat generation, too.

Exactly the same size and pin-for-pin compatible with the original TXMA-00014, my PML-TX01 is a true drop-in replacement.

My PM-TX01 is of course pin-for-pin compatible with the original Marshall TXMA-00014
My PM-TX01 is of course pin-for-pin compatible with the original Marshall TXMA-00014

You can buy my PML-TX01 here:

This item regularly goes out of stock, I'm afraid but... I encourage customers to back-order. Unfortunately, the crappy e-commerce plug-in I use, only tells the links (like the one above) that the item is out of stock. What 's the bloody point of that?!?!?! So if you want this, then please just visit the PML-TX01 page on my e-store here. Grr...


Marshall JMP-1s now go for between £400 and £700 (yes, £700). If you can pick one up nearer £400, then I personally think you've got yourself a bargain and a seriously good bit of gear.

If you want to find out more about the JMP-1, then there's loads of resources on-line and of course there are Marshall JMP-1 groups on Facebook like this one: https://www.facebook.com/themarshalljmp1

I know this box inside-out and I absolutely love it and love working on them, so if you have a JMP-1 that's in need of a little TLC, then don't hesitate to contact me.


UPDATE - 22nd July 2023

I often get asked about the memory back-up battery in the Marshall JMP-1 and with soldered batteries not really being in fashion anymore, replacements are difficult to get hold of. I therefore decided to knock up a small PCB that mounts into the original battery location but which has a CR2032 clip. This allows for easy battery changing with a standard (you guessed it) CR2032. Measuring the voltage on the battery is a little easier, too. 🙂

CR2032 adapter installed in Marshall JMP-1


UPDATE - 26th February 2024

Now available in my on-line store, a screw kit for the Marshall JMP-1.

Screw kit for the Marshall JMP-1


MARSHALL JMP-1 FACTORY RESET

WARNING: Implementing this procedure will permanently delete all user-made changes to any patches. If you want to save your JMP-1's memory, do a MIDI dump first.

  1. Switch off JMP-1 via the power button on the far right.
  2. Hold down the <OD 1> button and the <Clean 1> button.
  3. While holding down these buttons, switch on the JMP-1.
  4. Wait a few seconds while the display flashes and then release the OD 1 and Clean 1 buttons.

Marshall JMP-1 Factory Reset

Now then, you're JMP-1 might NOT reset! Yes, that's right. If your machine is locked, performing a factory reset will be useless until you unprotect your JMP-1’s memory.

To check the memory protect status of your JMP-1, simply try to save a patch. If the display shows 'St L', then your JMP-1 is locked and you will need to unlock it prior to performing a factory reset.

Unlocking is simple. Just follow this procedure:

  1. Try to save a patch.
  2. While 'St L' is displayed, press the <CHANNEL> button.
  3. The unit will unlock.
  4. You can now perform a factory reset as above.

MARSHALL JMP-1 MEMORY BULK DUMP

While you're here, you may find it useful to know how to dump the entire memory of your JMP-1 to a sequencer or sysex package like MIDI-Ox or SEND-SX.

  1. Just connect the MIDI OUT from your JMP-1 to the MIDI IN of your sequencer or computer's MIDI interface.
  2. If using a computer, select that port in your sysex package.
  3. Now just press <Patch> and <Volume> simultaneously on your JMP-1.
  4. THE END!

You may also find this dedicated JMP-1 editor useful: http://jmp-editor.mattzick.com/download.html
